Ceiling light fittings include ceiling roses, pendant sets, lamp holders and other accessories. There are many different types of lamp holders and batten holders. It is therefore important to understand the classification of ceiling light fittings in terms of fit and safety when installing them, so that you can better select the most suitable product.

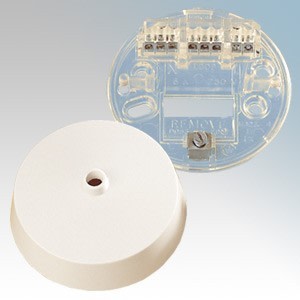

1.Ceiling Rose
In the beginning, we'd like to introduce the ceiling rose. It can be mounted upon the ceiling. Connect it with the pendant set, put the lamp inside, and you can use it. Considering it's fixed up on the ceiling, the suitable size and type, good quality material are important issues.
For example, the following are general parameters of ceiling rose:
Surface Mounting Type Ceiling Rose, 250V & 6A,
Sizes: Dia. 86mm ×33mm,
Heat Resistant Urea Cover with Clear base incorporates 3 in line terminals and an enlarged earth terminal.
Eight Tunnel Type terminals all with terminal screws, Terminal capacity 2×1.5mm²;
Spin‐on cover with smooth cable entry for maximum protection of pendant conductor insulation.
2.Lamp Holder:
The lamp holder is the device that you can put the lamp inside it.
Its heat-resistant degree needs to be noticed. And normally T2 degree is safe enough for daily use.
Metal Ring T2 rate heat resistant lamp holder, which is suitable for lamps up to 100W.
Do you know the types of lamp holders and how to choose the right one?
First, you need to understand the kinds of bulbs you'd like to purchase.
There are mainly 3 ones:
GLS
What is a GLS bulb? General Lighting Service bulb. It represents a traditional, basic and pear-shaped design that has been popular for more than a century. There are mainly 2 bases for GLS bulbs: bayonet or screw caps.

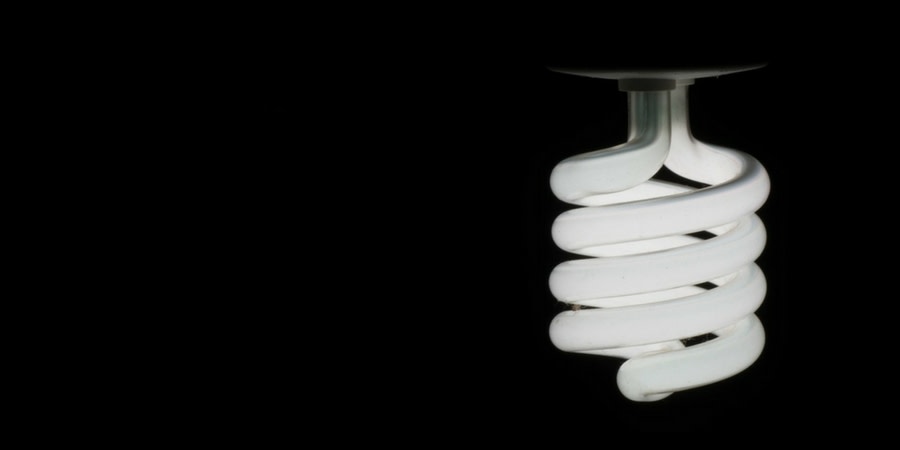

CFL
Compact fluorescent lamp bulbs are the energy-saving successor to traditional bulbs. But now it's gradually replaced by environmental-friendly LED lights.

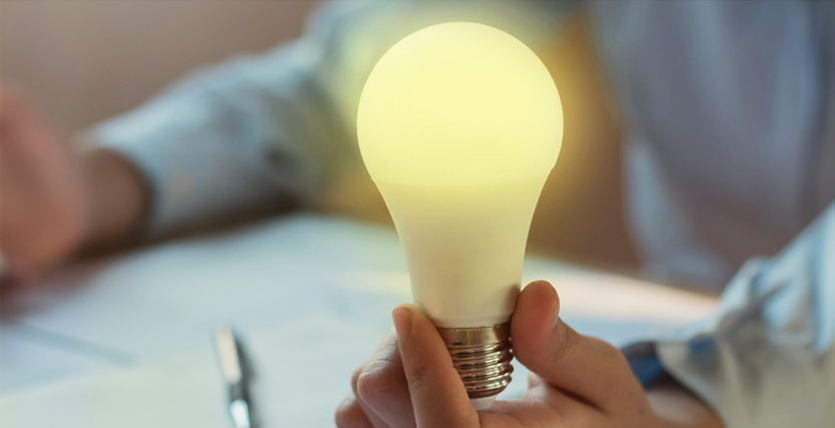

LED
Compact fluorescent lamp bulbs are the energy-saving successor to traditional bulbs. But now it's gradually replaced by environmental-friendly LED lights. LED bulbs use existing interface methods, i.e. screw-in (E26\E27\E14, etc.), bulb base (B22, etc.) and even imitate the shape of incandescent bulbs in order to comply with people's usage habits.
Second, you should choose the right light bulb base.
Here are the key types of lamp bulb base: bayonet cap, Edison Screw, GU bases and R-type base.
1 bayonet cap
Popular bayonet style with opposing angles for insertion into a holder.
B is used to denote the bayonet in the name of the bulb. - Example: B22
2 Edison Screw
The threaded Edison screw type, or ES, is now more widely used than the bayonet type.
The E in the name of the bulb indicates this type of base - for example E27.

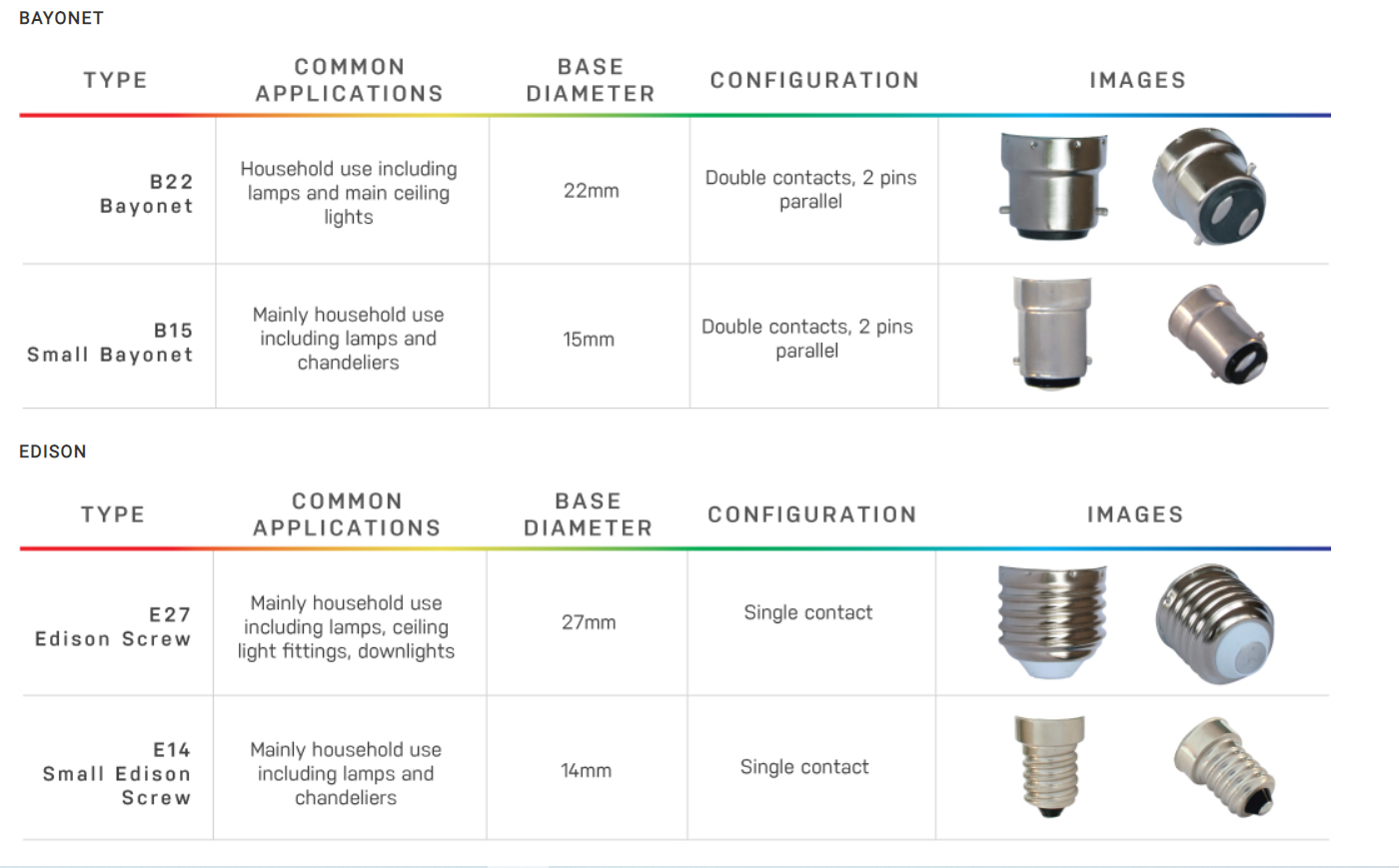

The following picture clearly shows the difference between the Bayonet cap and Edison Screw.
3 GU bases
GU bases comprise GU4, GU10 and other types currently used in some modern halogen and LED bulb designs. They feature two protruding prongs with a rounded head that twists and locks into place. G stands for double or multi-pin base, while U stands for universal. The G base features two thinner prongs that can be quickly inserted into compatible slots. You will find it suitable for a wide range of light bulbs including fluorescent tubes (G5 bulbs), LED strips and halogen bulbs (G4 bulbs) which are normally used in kitchen appliances.
4 R-type base
It has recessed contact points and a ceramic tip. A prominent example of use is the R7 bulb, a linear halogen bulb for floodlights, which can also be used as an LED lamp.

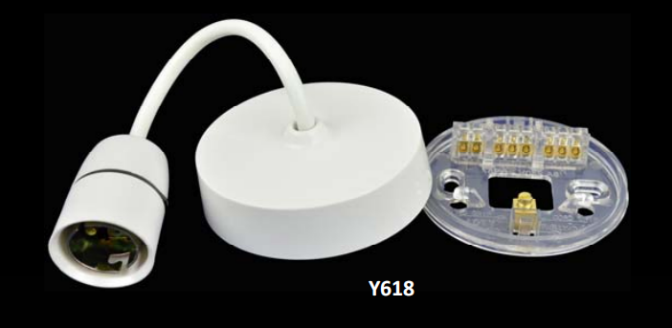

3.Pendant Sets:
Pendant flex heat resistant conform to BS6141.
Pendant Set, 9" flex cable, T2 Cord Grip IP
You can choose lamp holders with or without base, long skirt or home skirt, angle straight or 45°.
Regarding the enclosed base(dia.85mm), its cover can be removed without removing the skirt. The base is made of clear polycarbonate, with 8 tunnel type terminals and an enlarged earth terminal.

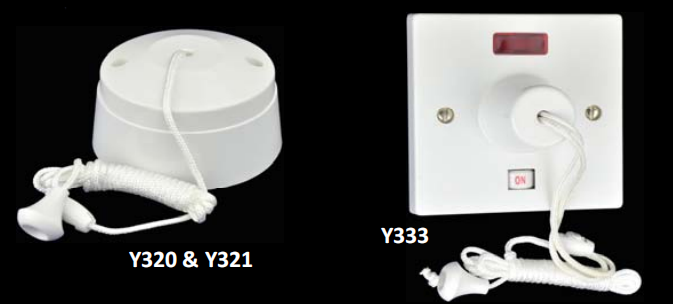

4.Pull cord switches：
It's convenient for people to control the light. And it's more used in bathrooms and other humid environments. It keeps the user away from touch the switch straightly for using safety. A pull-wire switch with a neon indicator can help you better determine whether the power is on or not.
Believe the above introduction must help you understand more information about purchasing ceiling accessories. If you have suggestions or questions, contact us directly or you can visit our website: www.hbsocket.com
