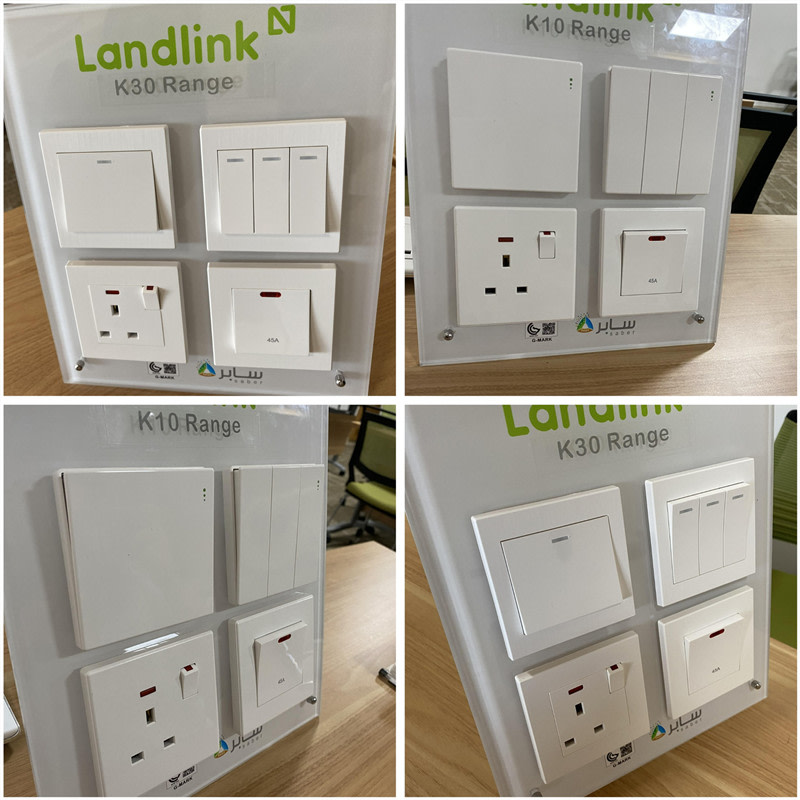

1. K10&K20&K30

Piano key design inspiration is a very big breakthrough in the appearance of wall switches. K series wall switches inherit this design concept, so the appearance is very atmospheric. High-quality plastic panel makes the product luster better than ordinary materials.

In addition to the conventional 1 gang, 2 gang, 3 gang and 4 gang, sockets with control switches. There is also a USB charging hole function with 2.1A, as well as a 45A junction box for independent matching series.

This type of product is very much in line with the aesthetics of the public, and the color is available in conventional colors such as black, silver, and champagne, in addition to the traditional white.

In addition to the product features described above, there is also very good news for Saudi Arabia customers, that is, the product has passed the SQM certification. At present, there are not many products in the Saudi market that have the SQM certified, and new products like this with the certificate are very popular.

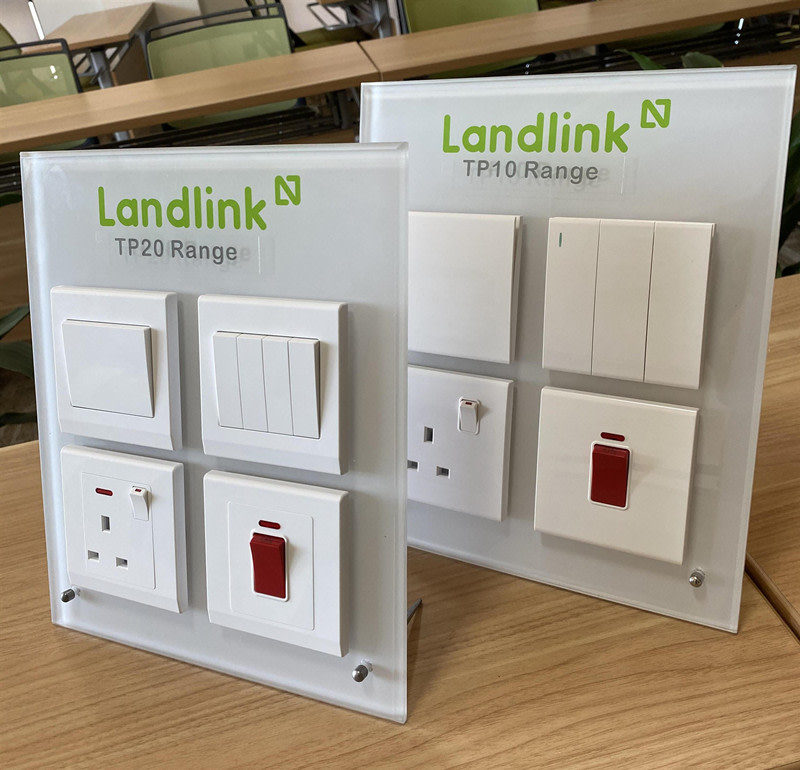

2. TP10/20 switches

This series continues the piano key design theme concept. In terms of material use and appearance, it can be said that the TP series is a Pro version of the K series. From the side, the TP series comes with a crescent-shaped slight curvature, the details of which show the designer's grasp of aesthetics. In addition, the single-open switch has a rimless button design, which is also very popular in the market now.

The Bakelite base allows the entire product to feel its texture when held in the hand. The same series includes a 45A large panel and a 16AX product branch to meet more personalized demands for the switch.

In addition to the conventional certification of TP series, it also needs to be specially pointed out that it comes with SQM certification which is very slightly available in the market at present. This is very good news for Saudi importers, because there are only a few suppliers with SQM qualification in the market, and the product itself has SQM certificate, which saves very valuable time for the introduction of new products into the market.

3. Introduction of other hot switch series.

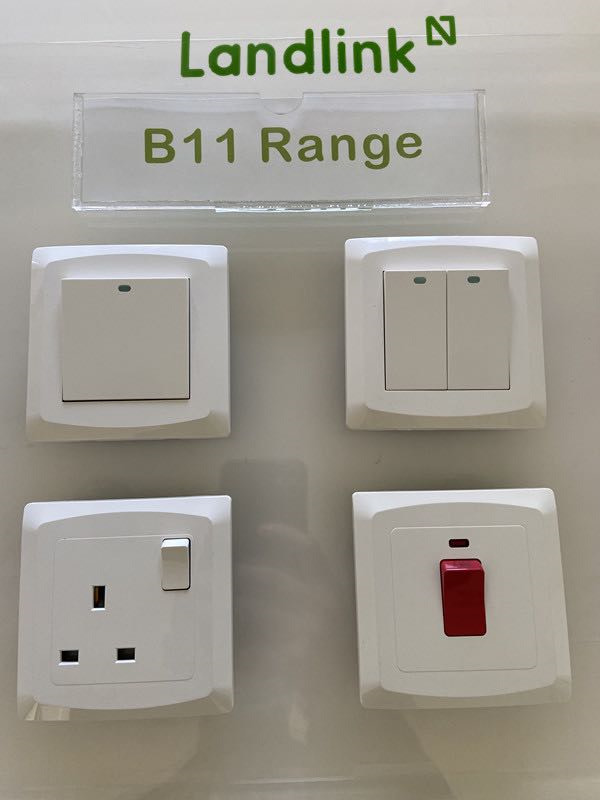

B11 series

B11 series is a classic model with high-cost performance, so purchasers who are very sensitive to price can consider this product. The whole series is very complete, suitable for full series procurement.

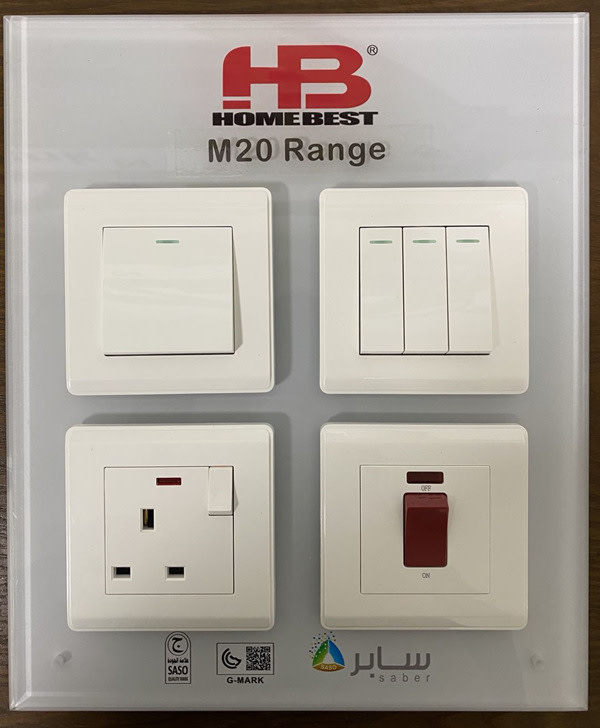

M20 series

M20 series is also a classic series. The basic models of this category have been sold in the market for some time, and the data through the market feedback is relatively stable. If purchaser friends have done market research in advance, this section will not be unfamiliar.

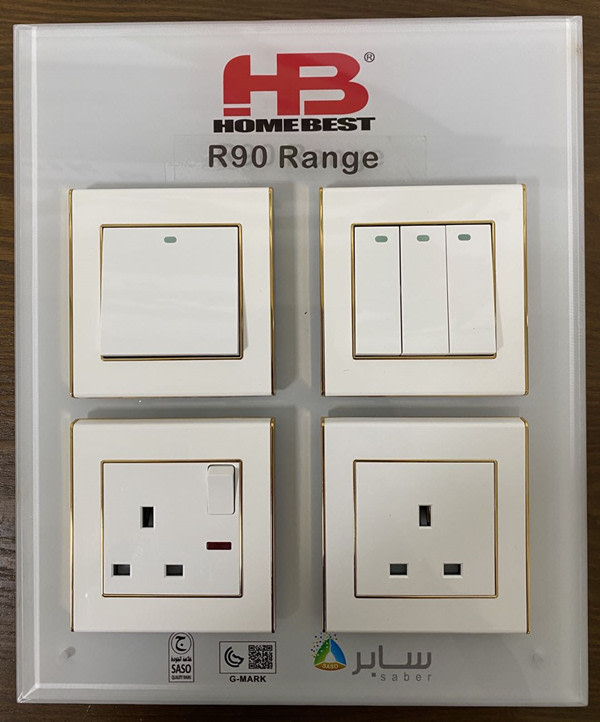

R90 Series

R90 is mainly designed with golden decorative lines. In the Middle East market, products with golden decorative elements are also very popular in the market, and purchasers' friends who are interested in gold should not miss this classic switch.

4. Popular Science of the wall switch single way & double way.

After the introduction of the 2 main series of this issue, we come to a popular knowledge about wall switches. Also, purchasers who just entering the industry, often have questions about the point - how to distinguish between single and dual control.

Single-control switch is the most common in the home circuit, that is, a switch to control one or more appliances. According to the number of connected appliances, it can be divided into single-control single link, single-control double link, single-control triple link, single-control quadruple link and other forms. For example, if a single switch is used in the kitchen, one switch controls a group of lighting; three spotlights may be installed in the living room, which can be controlled by a single triple switch.

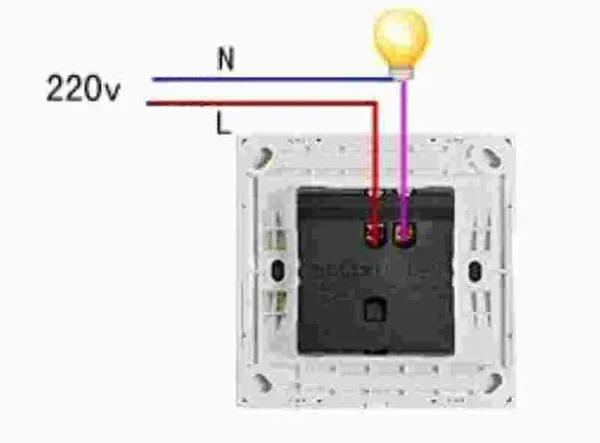

For example, the picture below shows the back of a single-control single switch. We can see through the picture that the 2 wiring holes on the back panel are connected to the fire and zero wires.

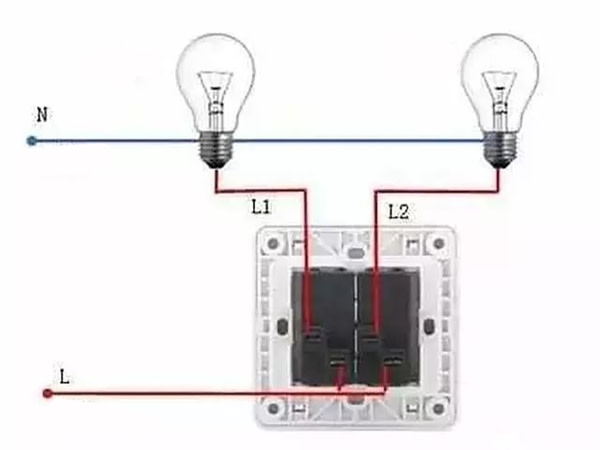

The picture below is the back of the single-control duplex switch. Through the picture we can see that the back panel of the four connection holes, but also can be understood as a duplex is the sum of two single connection. In addition, there are three links, four links are the same reason.

A dual control switch is a switch with both normally open and normally closed two contacts (i.e., a pair). Usually with two dual-control switches to control a light or other appliances, meaning that there can be two switches to control the switch of lamps and other appliances. For example, turn on the switch when you are downstairs and turn off the switch when you get upstairs. If a traditional switch is taken, if you want to turn the lights off, you have to run downstairs to close them, using a dual-control switch, and you can avoid this trouble. In addition, dual-control switches are also used to control emergency lighting circuits which need to be forced to light the lamps and lanterns, dual-control switches in the two ends of the dual power supply, one end connected to the lamps and lanterns, that is, a switch to control a lamp.

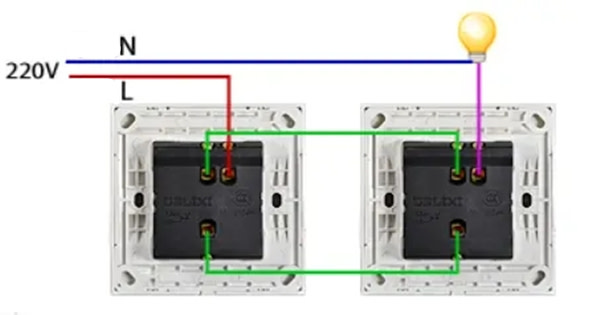

Still, for example, the figure below shows the back of two dual-control switches, compared to a single-control switch, with an extra hole for connecting the corresponding other control switch. Such wiring allows 2 switches to control the light bulb on/off at the same time, making it easy to control the light bulb in different locations in the room.

The above is a recommendation for the 2022 market hot models, as well as previous article recommendations that people leave more questions Cope. For more information updates, cheerfully to pay attention to our website: https://www.hbsocket.com/
